A/C Compressor clutch hub 22.5mm tool NO IMPACT WRENCH NEEDED, install video

This is a CNC machined in USA steel tool that will remove the drive hub of Denso clutchless compressors models:

5SE09C, 5SE12C, 5SEL12C, 5SL12C, 6SEL14C, 6SEL16C, 6SEU14C, 6SEU16C, 7SEU16C, 7SEU17C

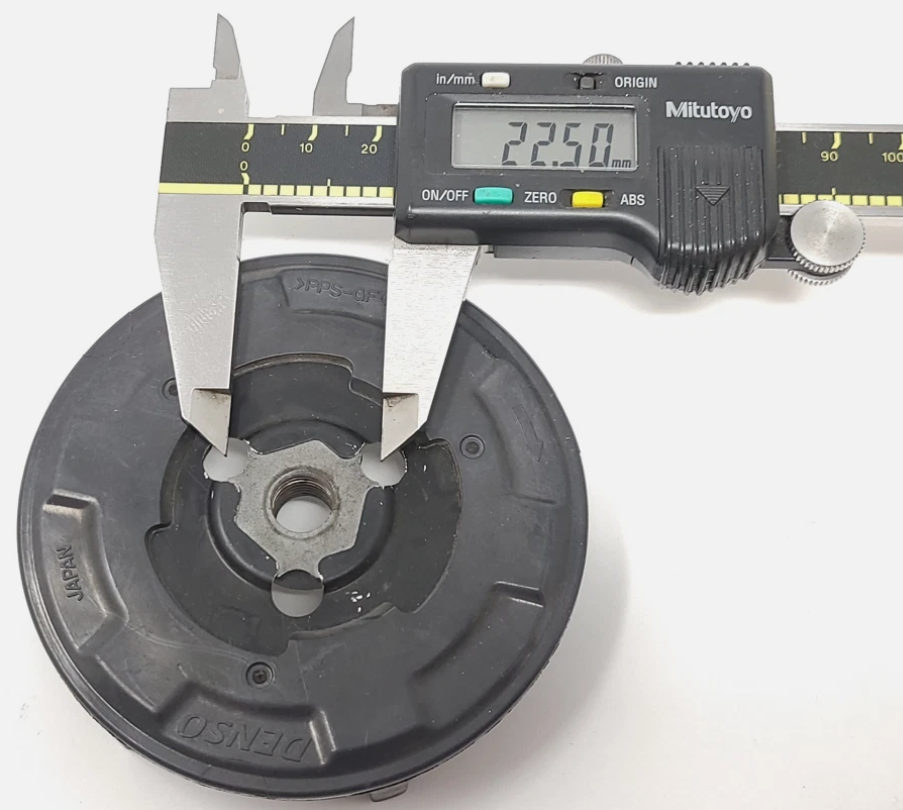

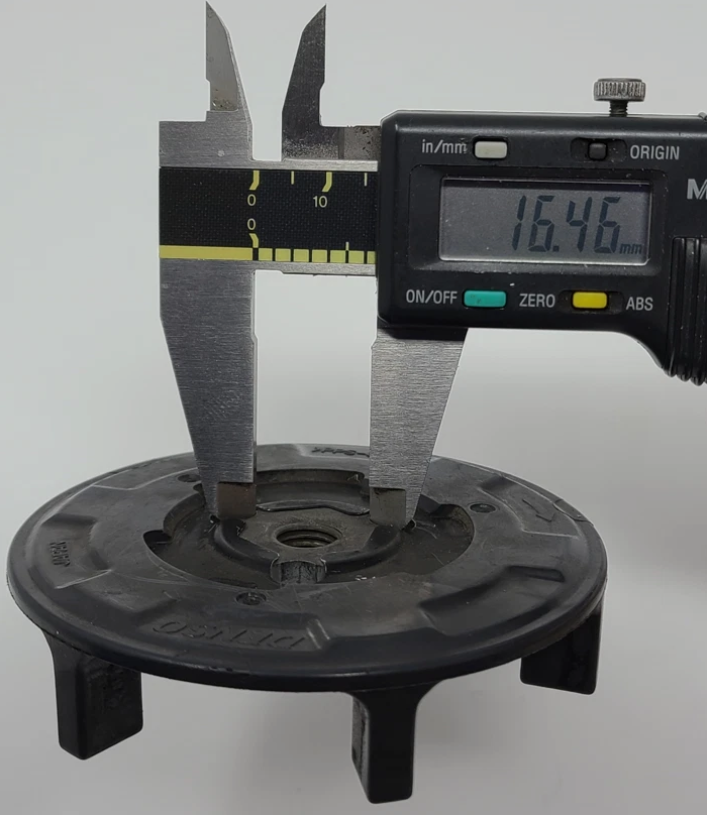

This tool fits hubs with 3x 6mm holes spaced 22.5mm center to center, and a bit under 16.5mm inside edge to inside edge of the holes, see the pictures.  If your hub has a smaller pattern, check my other listing for 20mm tool

These compressors are used on thousands of models: Audi, BMW, Mercedes-Benz, Porsche, Smart, Volkswagen, Skoda, Seat, Cadillac, Chevrolet, Vauxhall, Ford, Dodge, Jeep, Alfa Romeo, Fiat, Lancia, Opel, Suzuki, Peugeot, Citroen, Renault, Mitsubishi, Toyota, Puch, Proton, Hyundai

If your model isn't listed it still might fit, there are thousands of vehicle applications, not all are listed, look at the images in my video, if your compressor hub looks the same, it will most likely work.

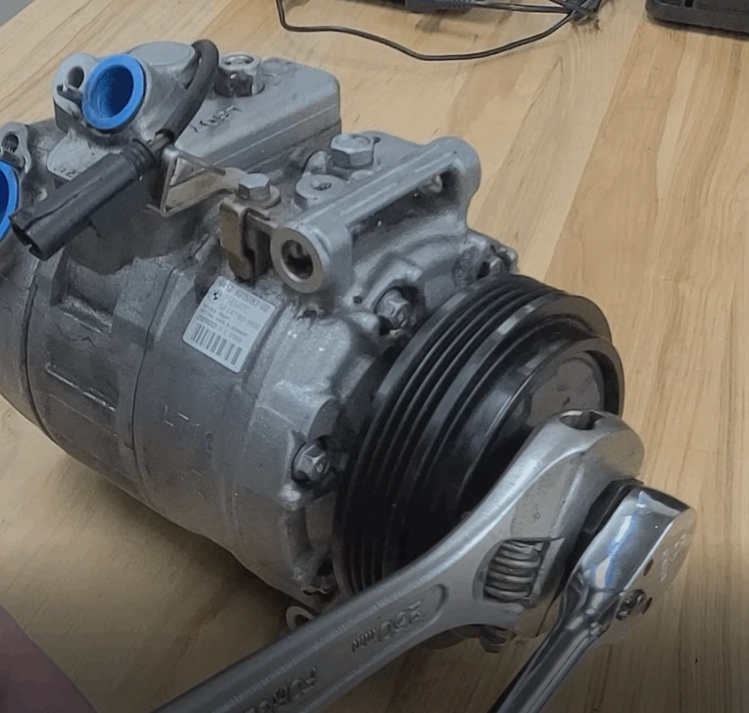

An air impact wrench is NOT NEEDED, you will only need a 3/8 drive 7mm 6 point socket and ratchet handle and an adjustable wrench or 28mm wrench.

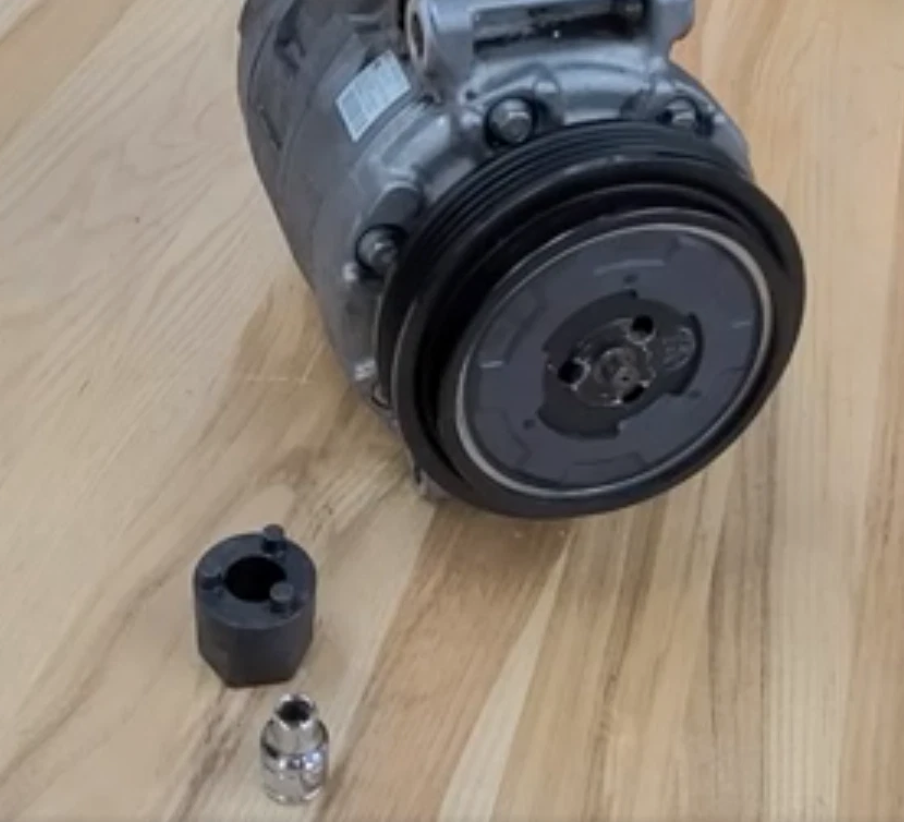

Please watch my instructional video to see how to use this tool and also how to remove and replace the pulley and bearing for these compressors.  I've changed the design to work with most standard short 3/8 drive 7mm sockets, the socket is not included.

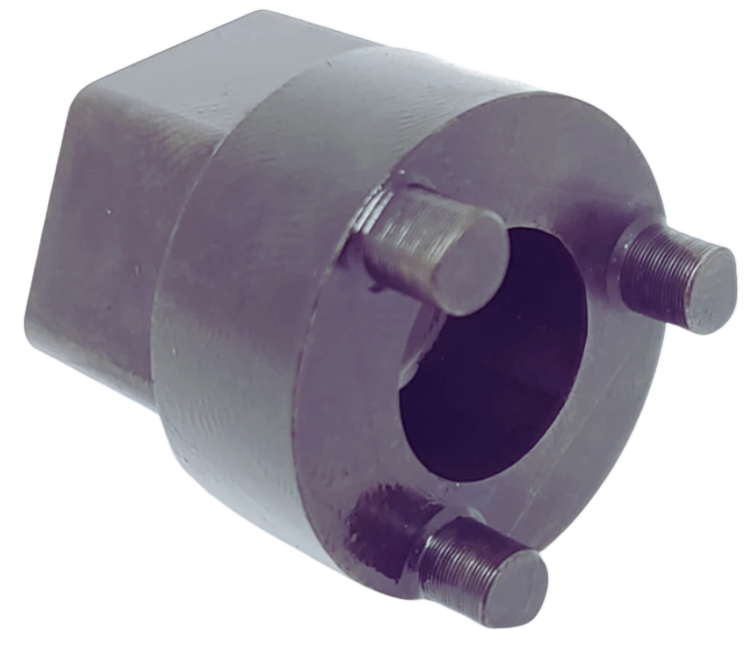

This tool is designed for OEM compressor hubs made by Denso, these style hubs were used on many OEM vehicles.  The pins on this tool are not round, they are machined into a special "football" shape to work with Toyota Camry and Rav4 hubs, while still making perfect contact with round hole German OEM hubs, and also many aftermarket hubs that have holes that are also football shaped.

Ausbauwerkzeug Kompressorkupplung für Denso Kompressoren
